Triple7 Brass Edition

ReefsRC – Triple7 Brass Edition

Details:

• Direct Power High Current Servo
• High torque, high speed
• fully programmable (Reefs USB-Link required for programming)
• Spline: 25T

The biggest advantage of the high voltage capability is that you can connect your 3S battery directly! The Triple 7 Brass ULTRA Finish Servo is ready to shine as a real eye-catcher in your next project – with its considerable weight exactly where you need it.

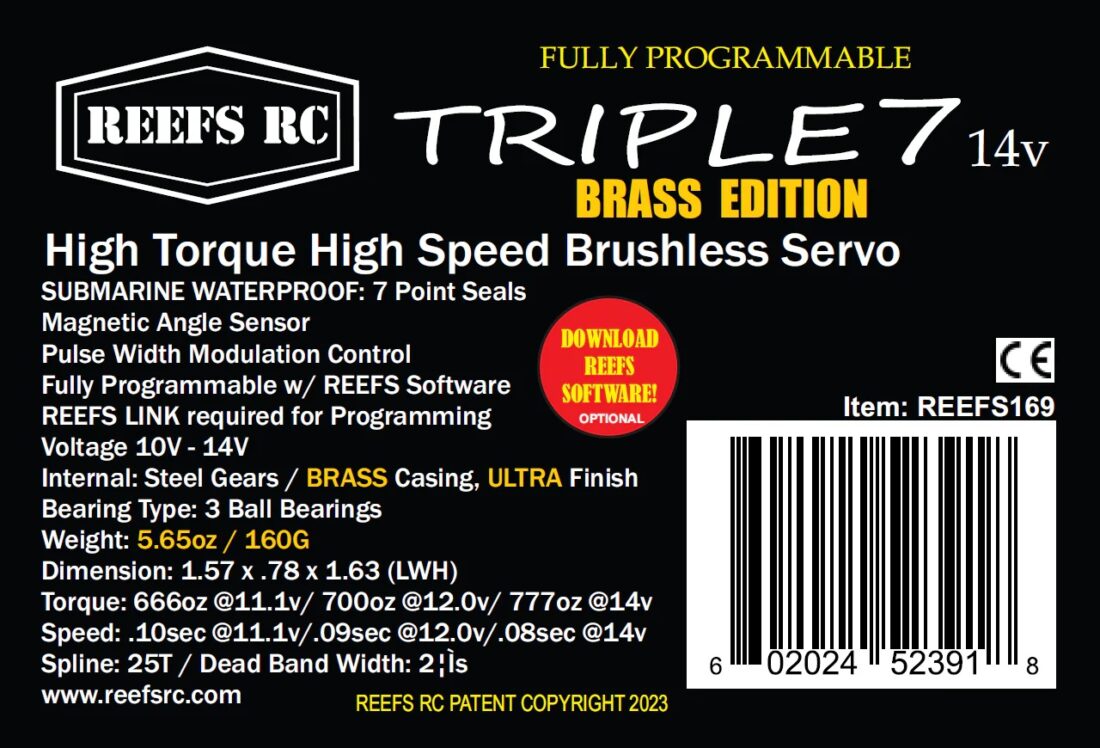

Technical data:

• Motor: 4-POLE – Brushless
• Waterproof: IP67, 7-point seals
• Sensor: Magnetic angle sensor
• Voltage: 10V – 14V max
• Internals: Steel gears

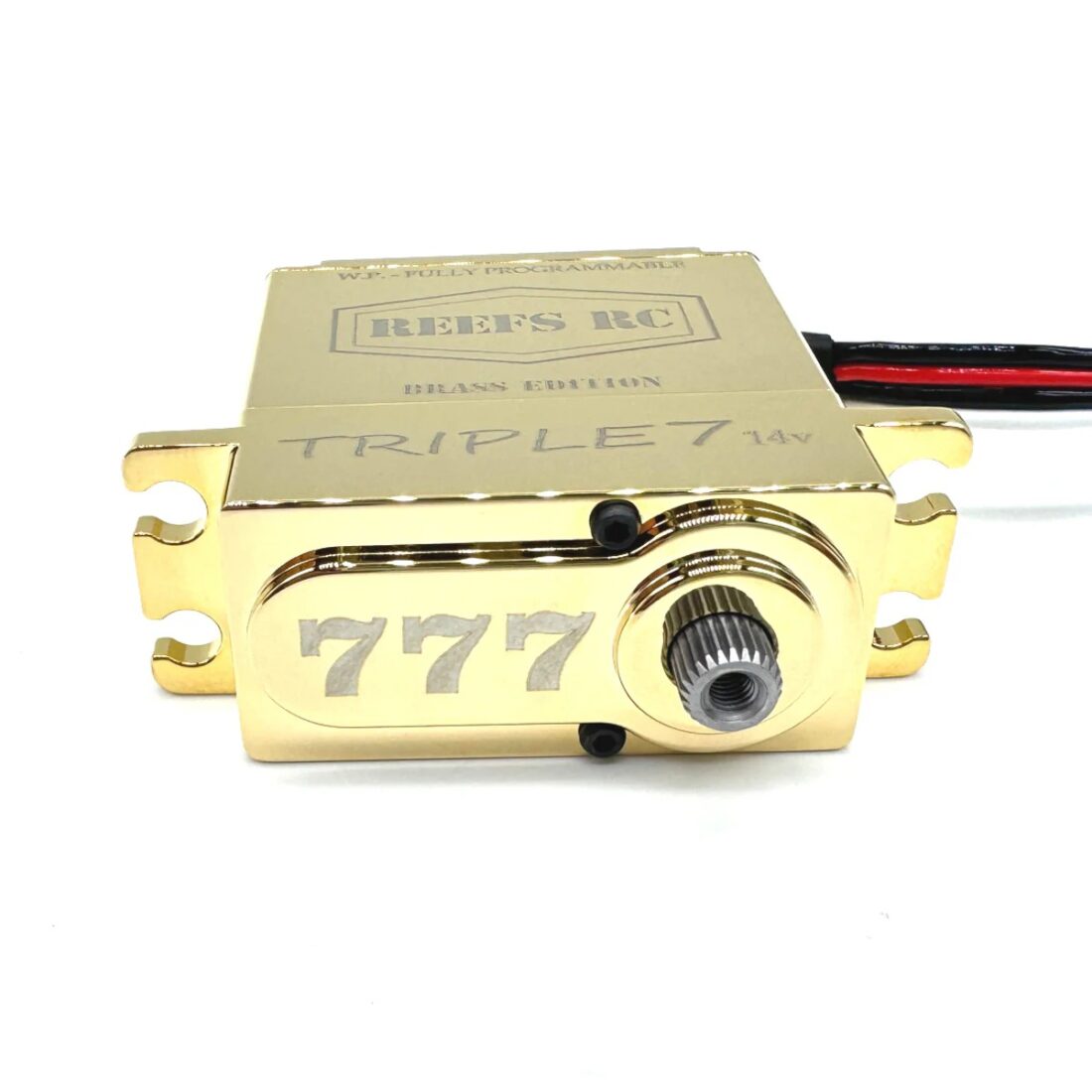

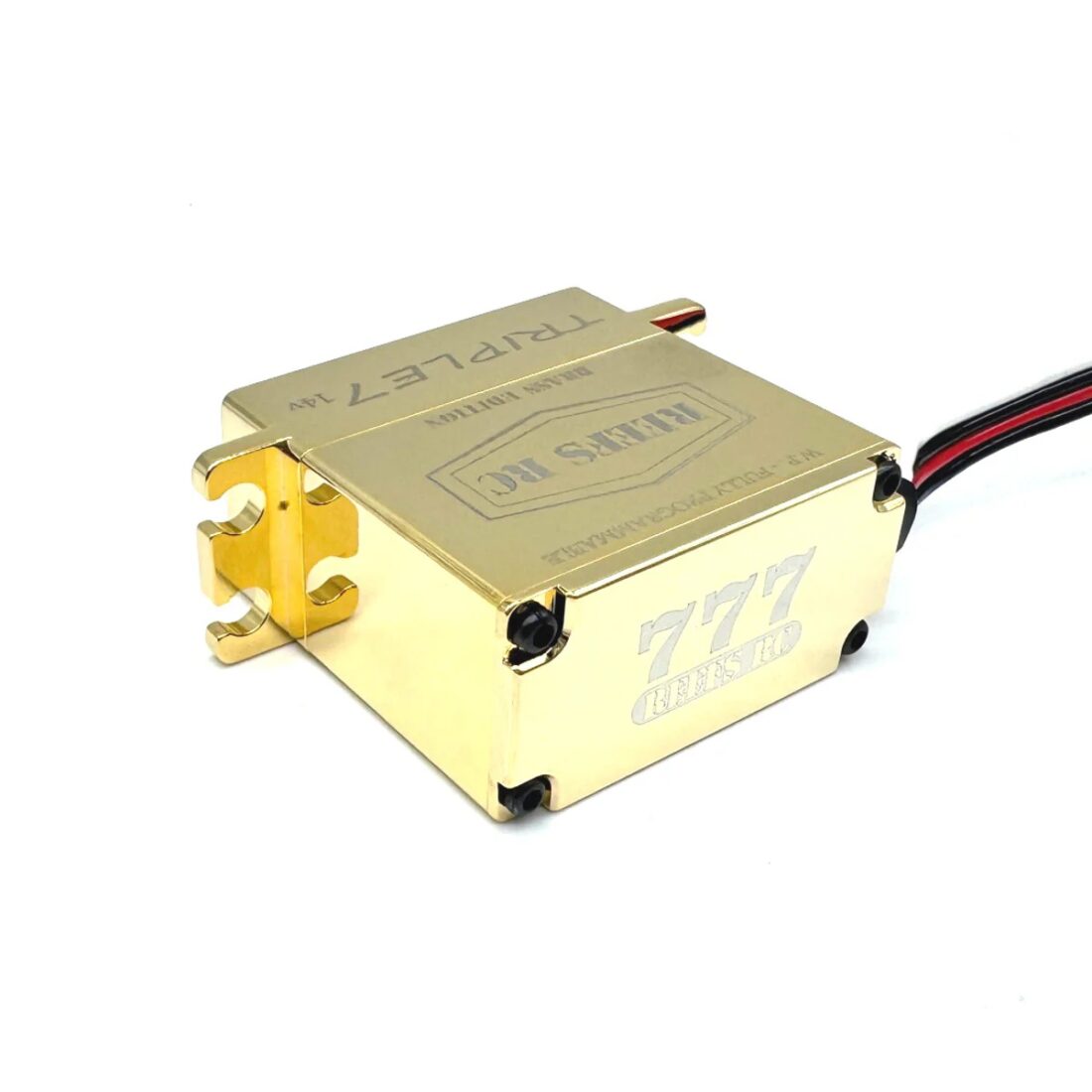

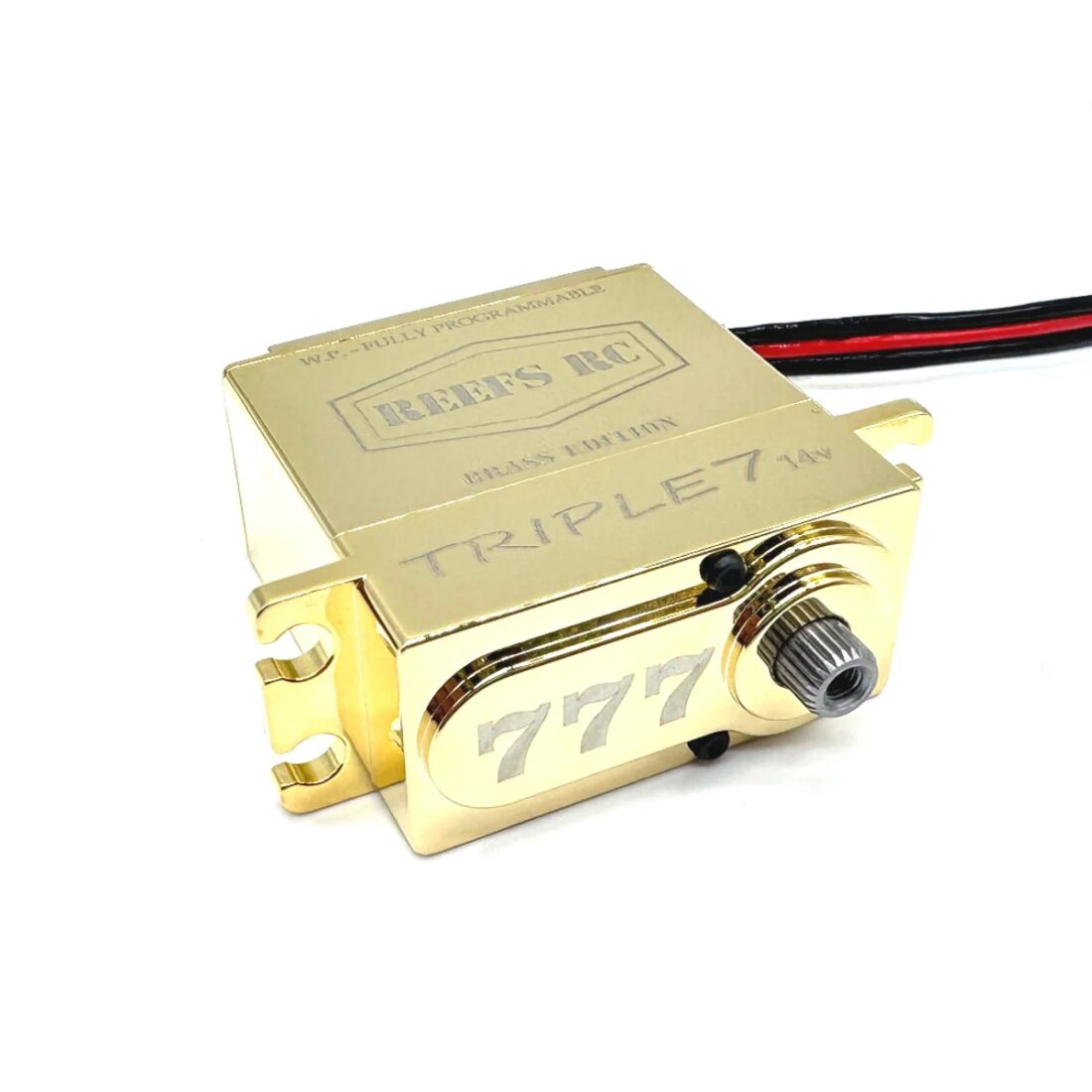

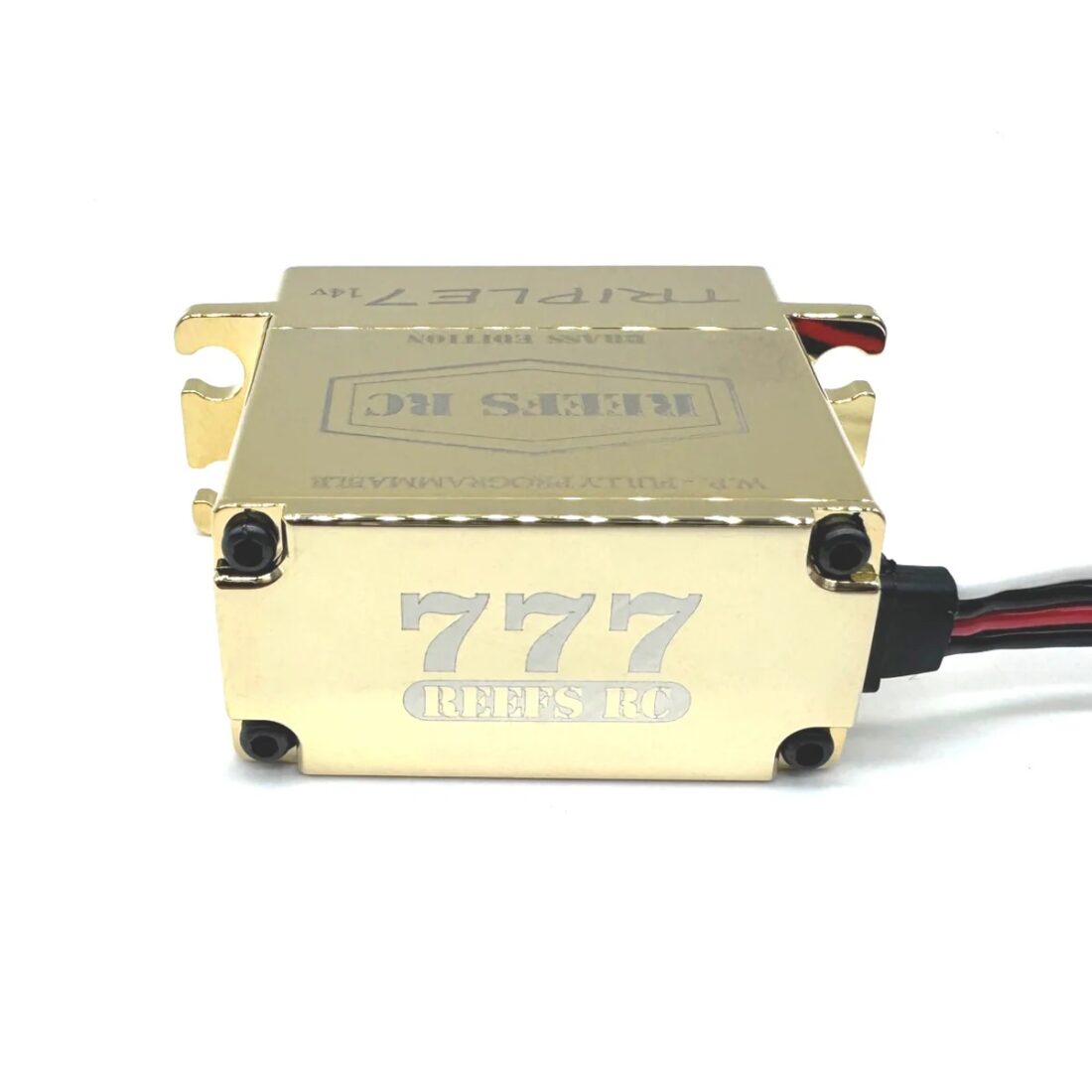

• Housing: CNC machined brass case with ULTRA finish
• Bearing Type: 3 Ball Bearings
• Weight: 160g (5.65oz)
• Dimensions (L, W, H): 39.8 x 20 x 41.4mm
• Spline: 25 teeth

• Torque: 48kg (666oz) at 11.1V / 50.4kg (700oz) at 12V / 56kg (777oz) at 12.6V
• Speed: 0.1sec at 11.1V / 0.09sec at 12V / 0.08sec at 12.6V
• Idle Current: 380mA at 11.1V / 450mA at 12V / 480mA at 12.6V
• Load Current: 4000mA at 11.1V / 4500mA at 12V / 4800mA at 12.6V

Note:
Maximum input voltage of 14 volts. Use a screw with a maximum size of M3x8 mm for the servo horn. Do not leave the servo connected to the battery when not in use, as this may cause damage to the battery due to over-discharge.
