RAW 800LP Servo Brass Edition

142,95 €

incl. 19% VAT

plus Shipping costs

Delivery time 14 business days

Free shipping in Germany from €75

Quality Products! Designed in Germany!

Product details

Description

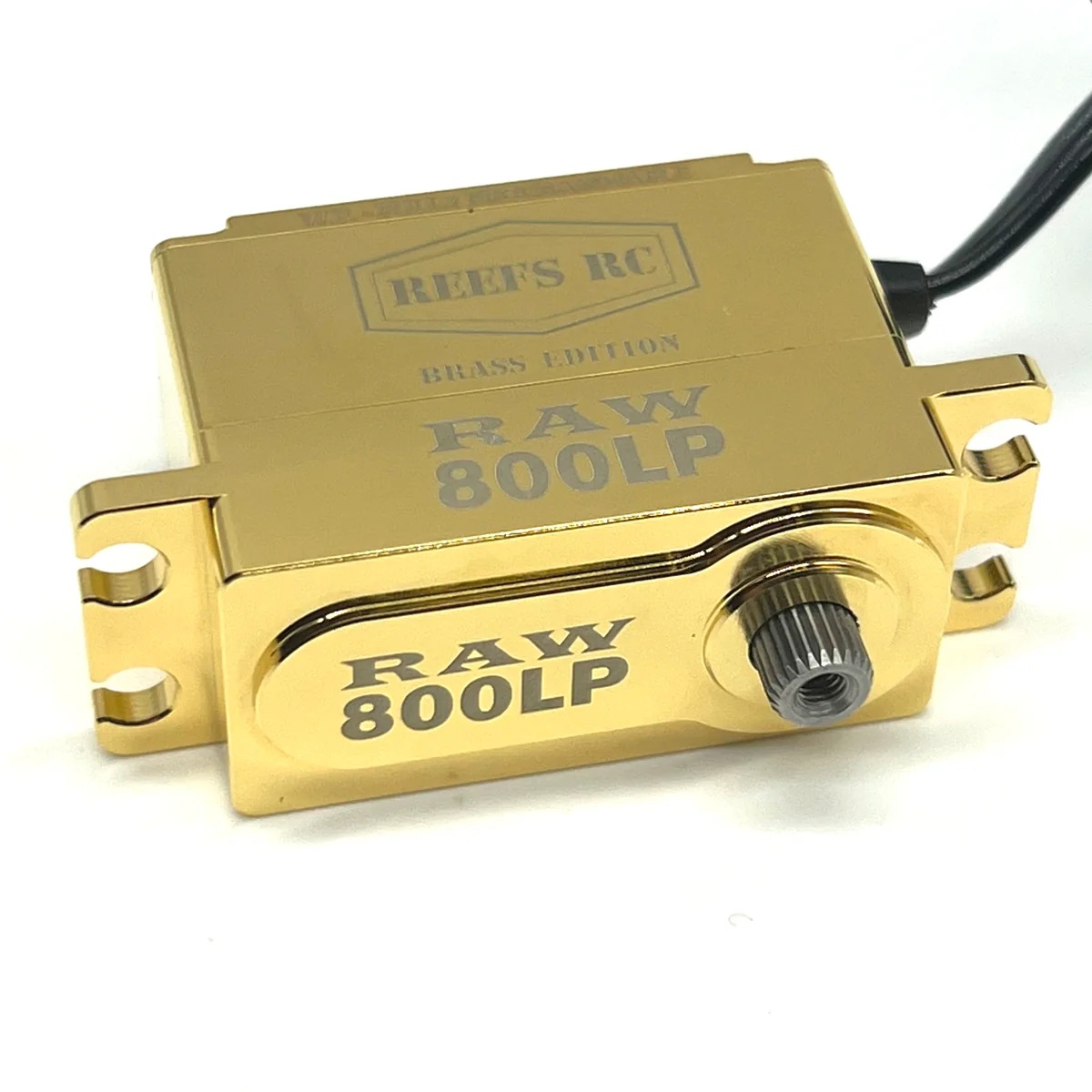

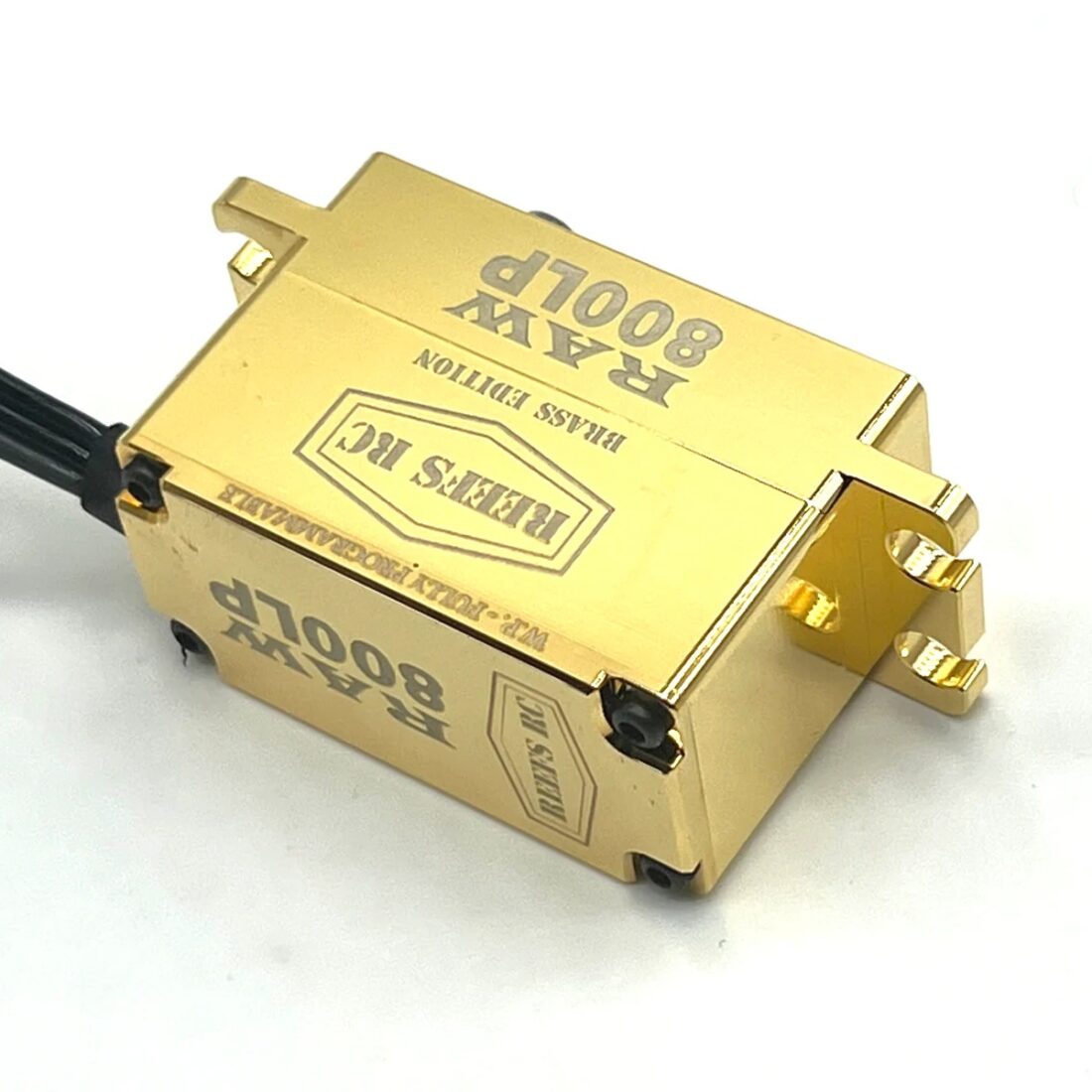

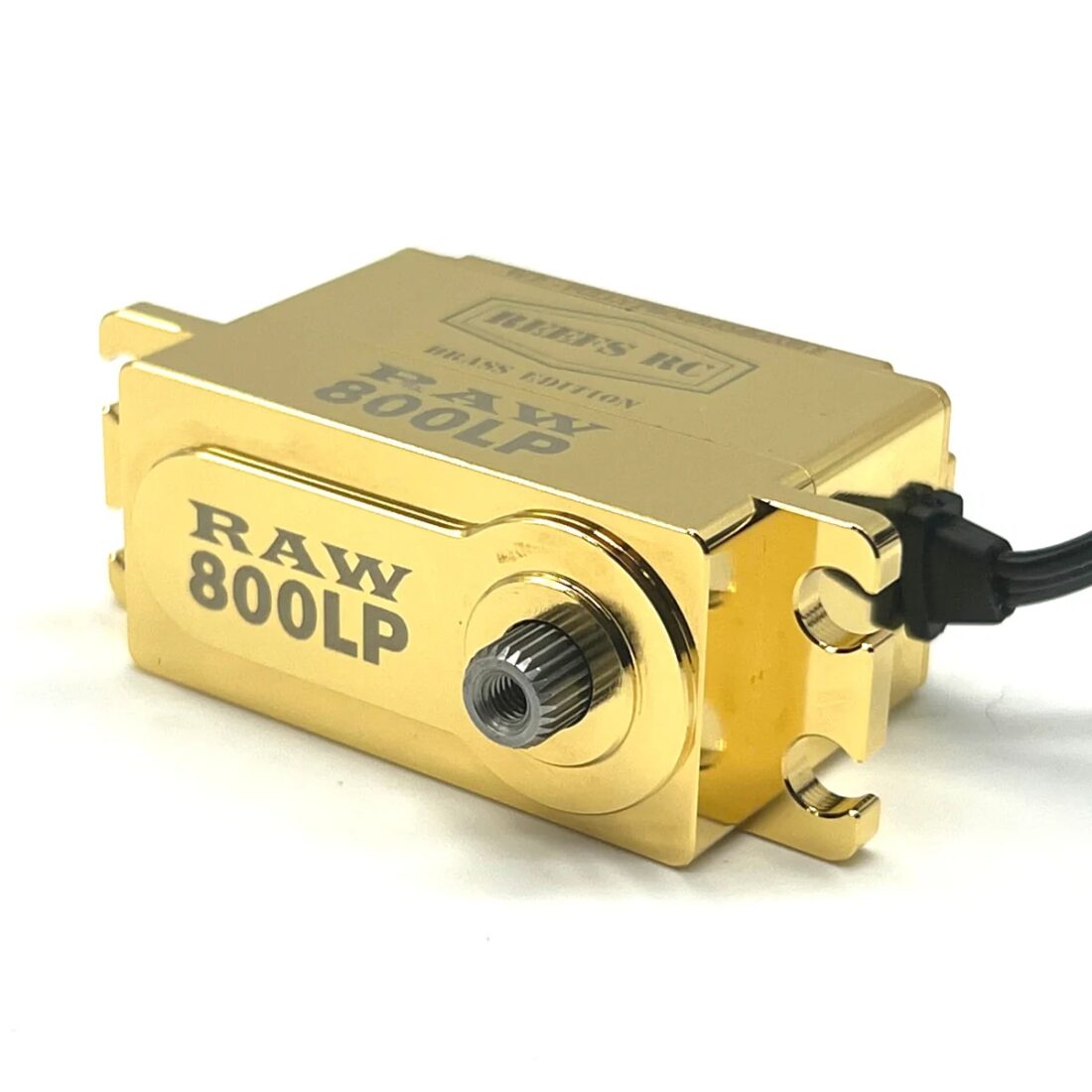

ReefsRC – RAW800LP Brass Edition

Details:

High torque, high speed
fully programmable (Reefs USB-Link required for programming)
Spline: 25T

Technical data:

Motor: 4-POLE – Brushless
Waterproof: IP67, 7-point seals
Sensor: Magnetic angle sensor
Voltage: 4.8V – 8.4V
Internals: Steel gears
Housing: CNC machined brass case with ULTRA finish
Bearing type: 2 ball bearings

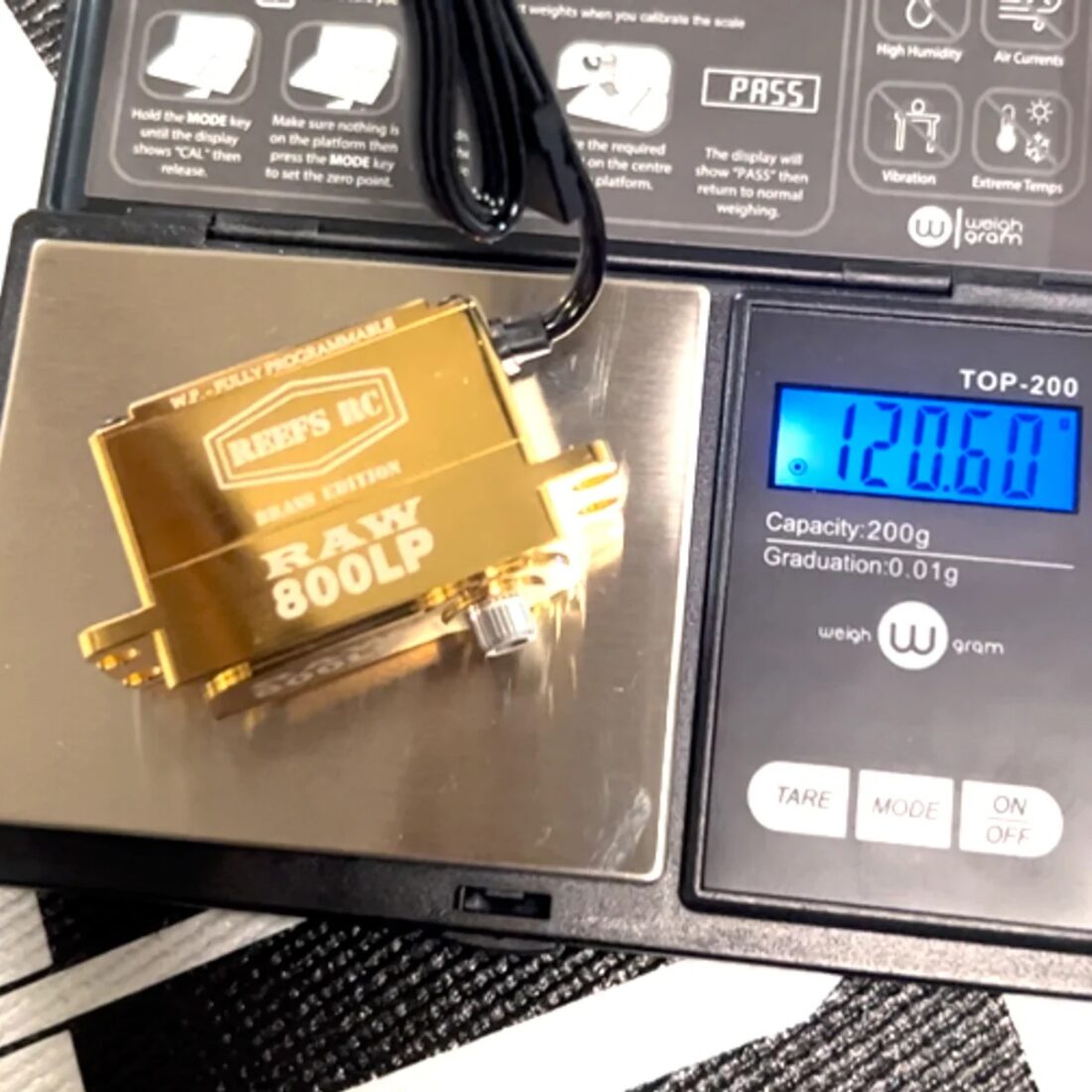

Weight: 120.1 g (4.23oz]
Dimensions (L, W, H): 40.8 x 20.2 x 29.5mm
Spline: 25 teeth

Torque: 45kg (635oz) at 6V / 51kg (715oz) at 7.4V / 57kg (800oz) at 8.4V
Speed: 0.12s at 6V / 0.10s at 7.4 V / 0.09s at 8.4V
Idle current: 500mA at 6.0 V / 540mA at 7.4 V / 580mA at 8.4 V
Load current: 6000mA at 6.0 V / 6800mA at 7.4 V / 7500mA at 8.4 V

Note on delivery time:
ReefsRC servos are manufactured in the USA “Made in US” and imported to customer order. Therefore, there may occasionally be slight deviations in the delivery time. We do our best to meet the stated delivery times and will of course inform you of the current status of your order.

Product Safety & Data

Additional information

Herstellerinformationen:

Reefs RC
1709 Rimpau Ave, Suite 109
Corona Kalifornien 92879
USA
E-Mail: [email protected]

Person responsible for the EU

ScaleMonkey
Käthe-Kollwitz-Weg 73
89081 Ulm
Deutschland
Telefon: +49 (0)731 / 40390785
E-Mail: [email protected]

Sicherheitshinweise:

Keep away from children under 36 months, as it may contain small parts that can be swallowed and sharp objects (choking hazard).
Not suitable for children under 14 years. Use only under direct adult supervision.
Product must not be disposed of with household waste; return it to the manufacturer or a collection point such as a recycling center.
