1100 Smart Brass Edition

1100 Smart Brass Edition

199,95

incl. 19% VAT

Delivery time 14 business days

Quality Products! Designed in Germany!

Product details

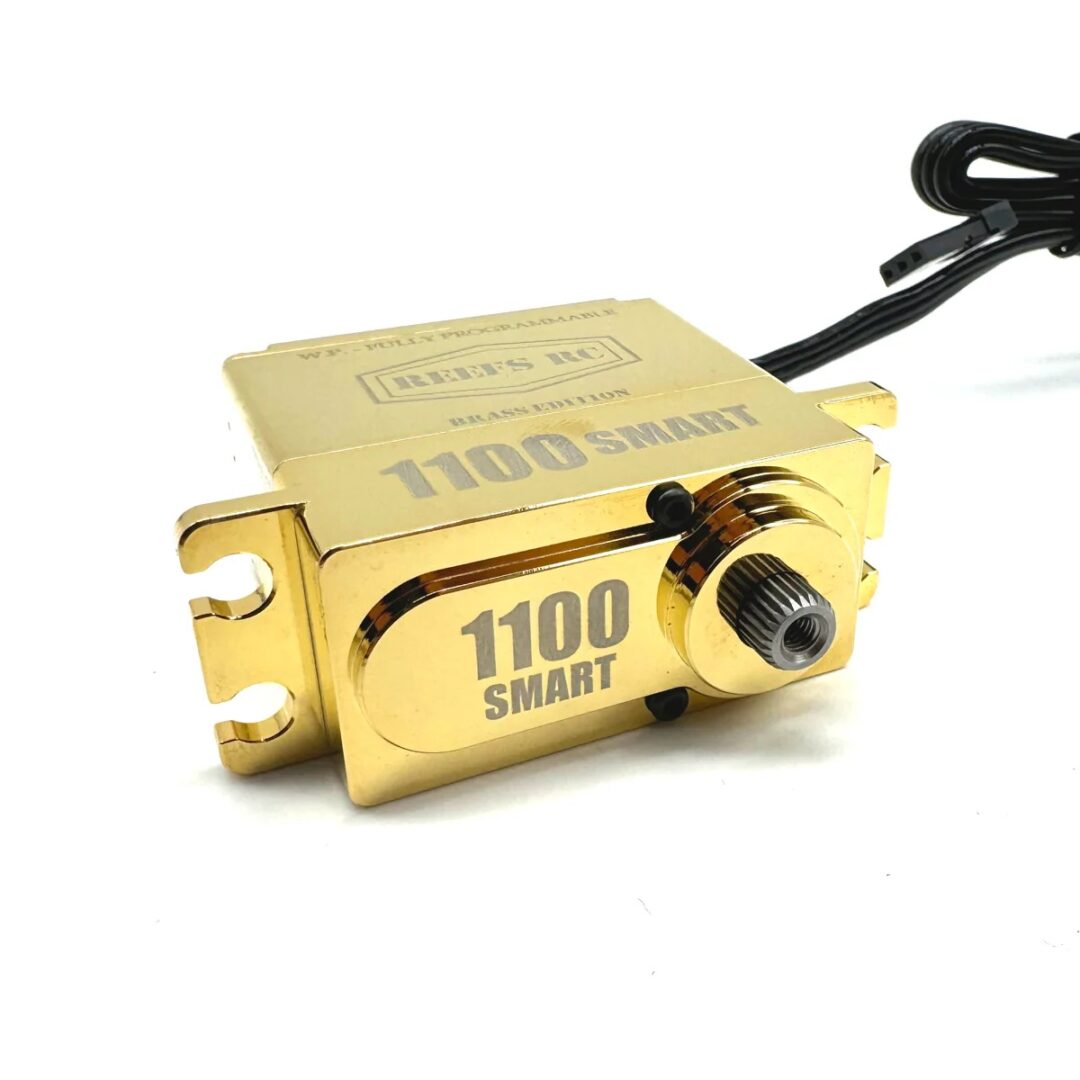

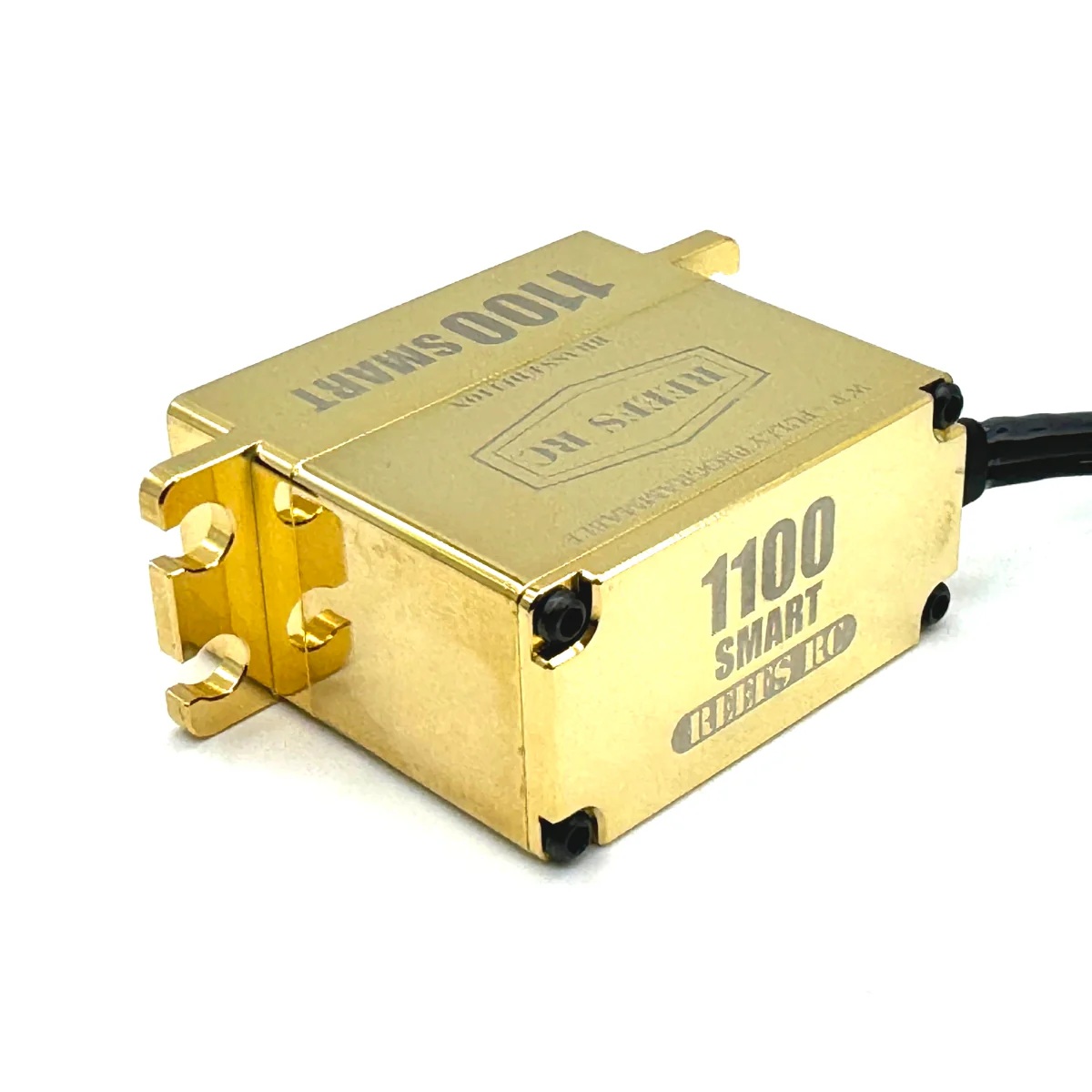

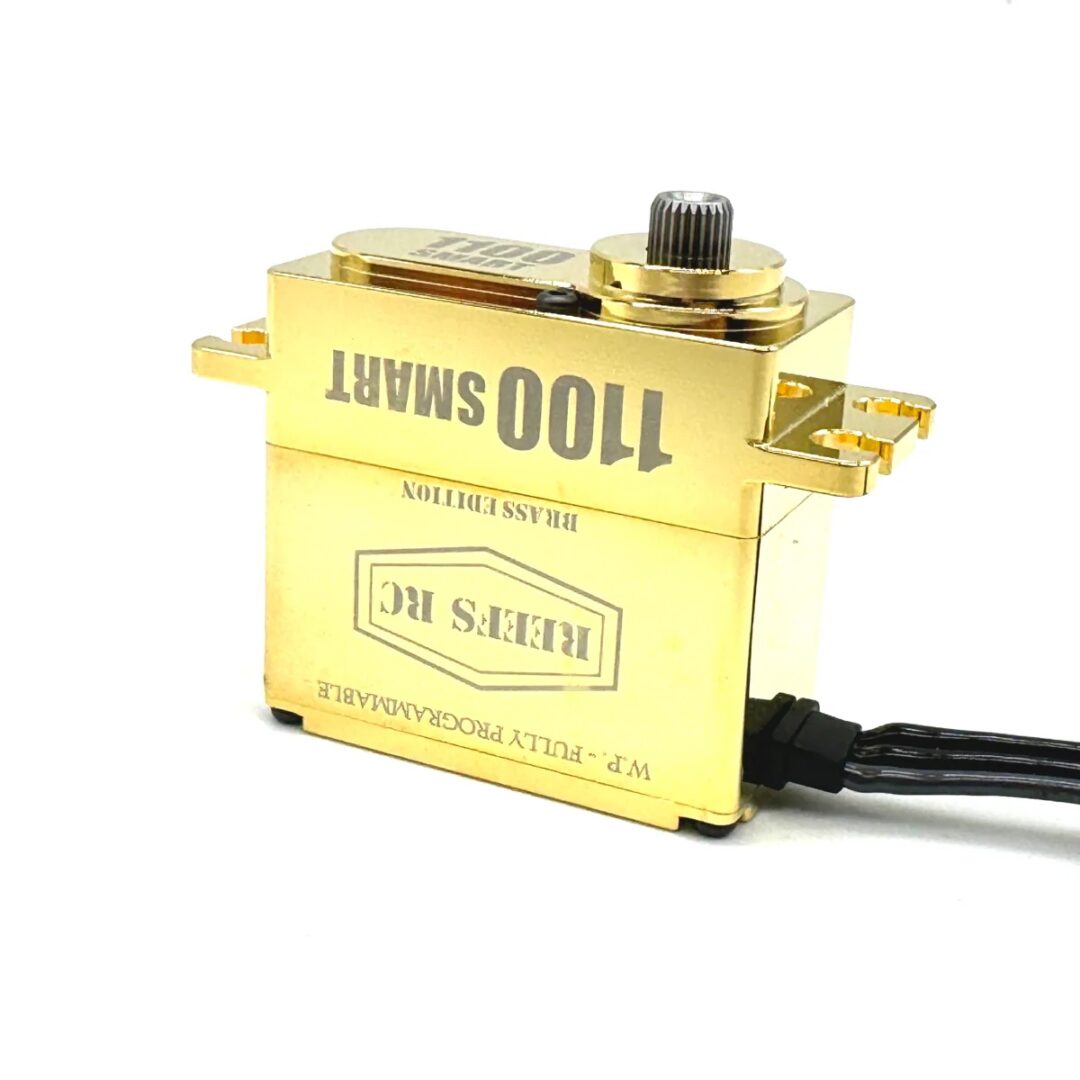

ReefsRC – 1100 Smart Brass Edition

Details:
  • High torque, high speed
  • Military-grade construction
  • fully programmable (Reefs USB-Link required for programming)
  • Spline: 25T
Technical data:
  • Motor: 4-POLE – Brushless
  • Waterproof: IP67, 7-point seals
  • Sensor: Magnetic angle sensor
  • Voltage: 4.8V – 8.4V
  • Internals: Steel gears
  • Housing: CNC machined brass case with ULTRA finish
  • Bearing Type: 4 Ball Bearings
  • Weight: 150 g (5.29oz)
  • Dimensions (L, W, H): 39.8 x 20 x 38.1mm
  • Spline: 25 teeth
  • Torque: 54.7 kg (760oz) at 6V / 67 kg (930oz) at 7.4V / 79.2 kg (1100oz) at 8.4V
  • Speed: 0.16sec at 6V / 0.13sec at 7.4V / 0.12sec at 8.4V
  • Idle Current: 460mA at 4.8V / 500mA at 6.0V / 540mA at 7.4V / 580mA at 8.4V
  • Load Current: 5400mA at 4.8V / 6000mA at 6.0V / 6800mA at 7.4V / 7500mA at 8.4V



Note on delivery time:
ReefsRC servos are manufactured in the USA “Made in US” and imported to customer order. Therefore, there may occasionally be slight deviations in the delivery time. We do our best to meet the stated delivery times and will of course inform you of the current status of your order.
