CM3510MG V6.0 35kgf.cm@8,4V IP65
CM3510MG V6.0 35kgf.cm@8,4V IP65
US$ 72.47
incl. 19% VAT
plus shipping
In stock, delivery time approx. 5-7 business days
Free shipping in Germany from US$ 85.97
Product details
Description
Servo KST CM3510MG.
Clubman Servo (CM-Servo) – the new affordable entry into the KST world.
The housing of the CM servos is made of a high-quality plastic compound. Powerful coreless motors, combined with robust metal gears, are installed as the drive. The servos are also IP65 dust and waterproof. The voltage range is between 4.8 and 8.4 Volts.
Technical Details:
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Stalling Torque: [email protected]
[email protected]
[email protected]
[email protected]
- Speed: 0.20sec/60°@4.8V
0.15sec/60°@6.0V
0.13sec/60°@7.4V
0.10sec/60°@8.4V
- Start Current: [email protected]
[email protected]
[email protected]
[email protected]
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10°C to +65°C
- Soft Start: Programmable
- Motor Type: Coreless DC Motor
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Waterproof: IP65

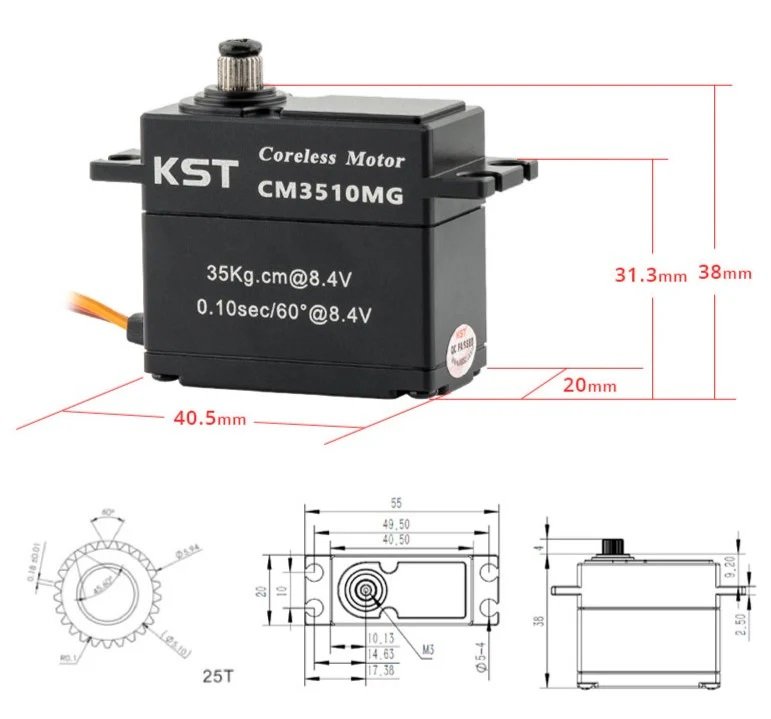

- Case Dimensions: 40.5mm*20mm*38mm±0.2mm
- Weight: 70g±10%
Programmable with KST-Tool 3 and KST-Tool 5
