CM5018WP V6.0 [email protected] IP68

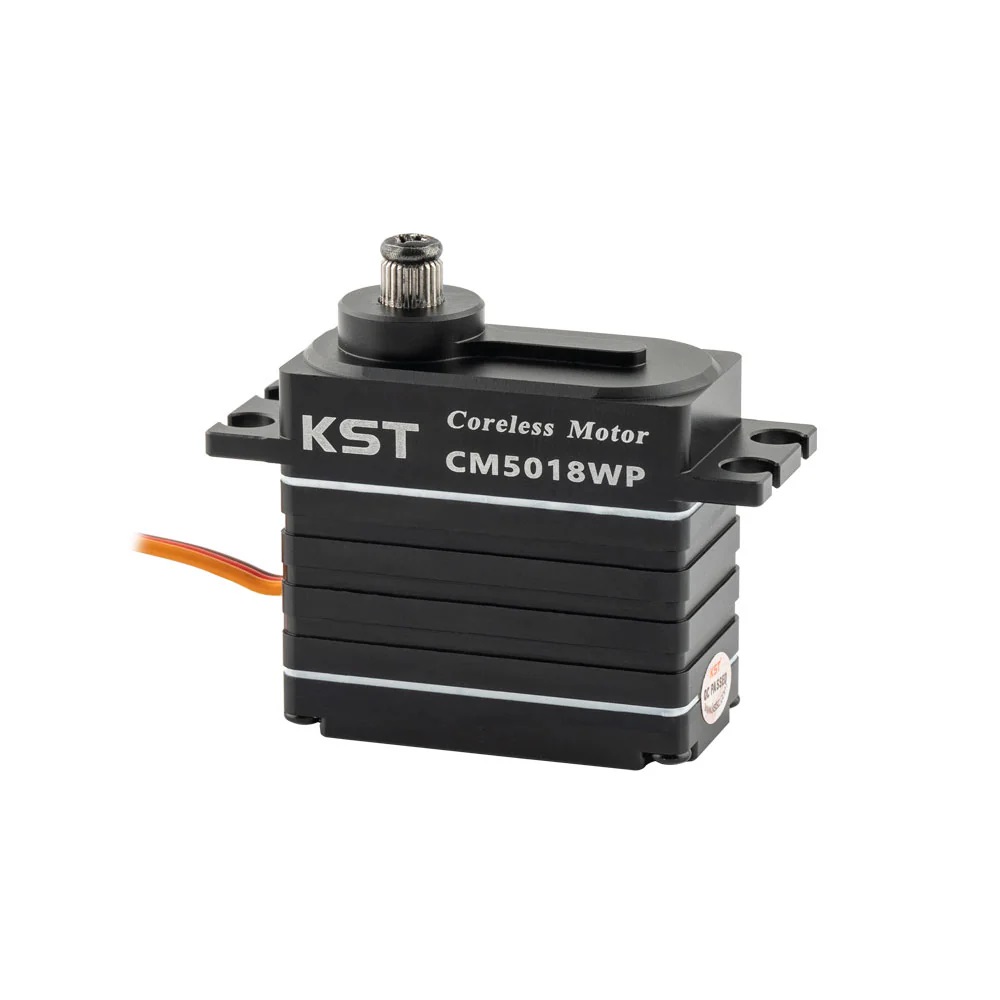

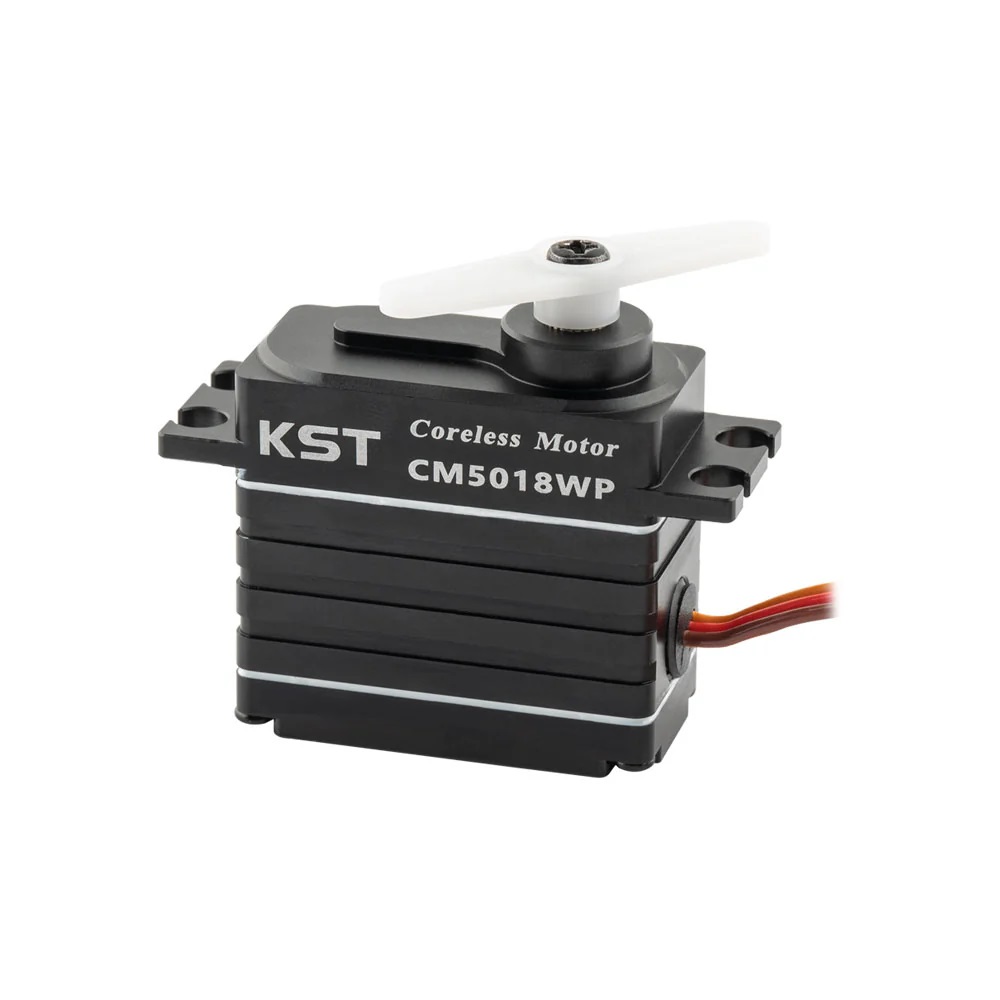

KST CM5018WP Servo.

Clubman Servo (CM-Servo) – the new affordable entry into the KST world.

The CM-Servo housing is made of a high-quality plastic composite. Powerful coreless motors combined with robust metal gears provide the drive. These servos are also IP65 dust- and water-resistant. The voltage range is between 4.8 and 8.4V.

Technical Details:

• Rated Voltage: DC 7.4V
• Voltage Range: DC 4.8V–8.4V

• Stall Torque: [email protected]
  [email protected]
  [email protected]
  [email protected]

• Speed: 0.25sec/60°@4.8V
  0.23sec/60°@6.0V
  0.20sec/60°@7.4V
  0.18sec/60°@8.4V

• Start Current: [email protected]
  [email protected]
  [email protected]
  [email protected]

• Working Frequency: 1520us/333Hz

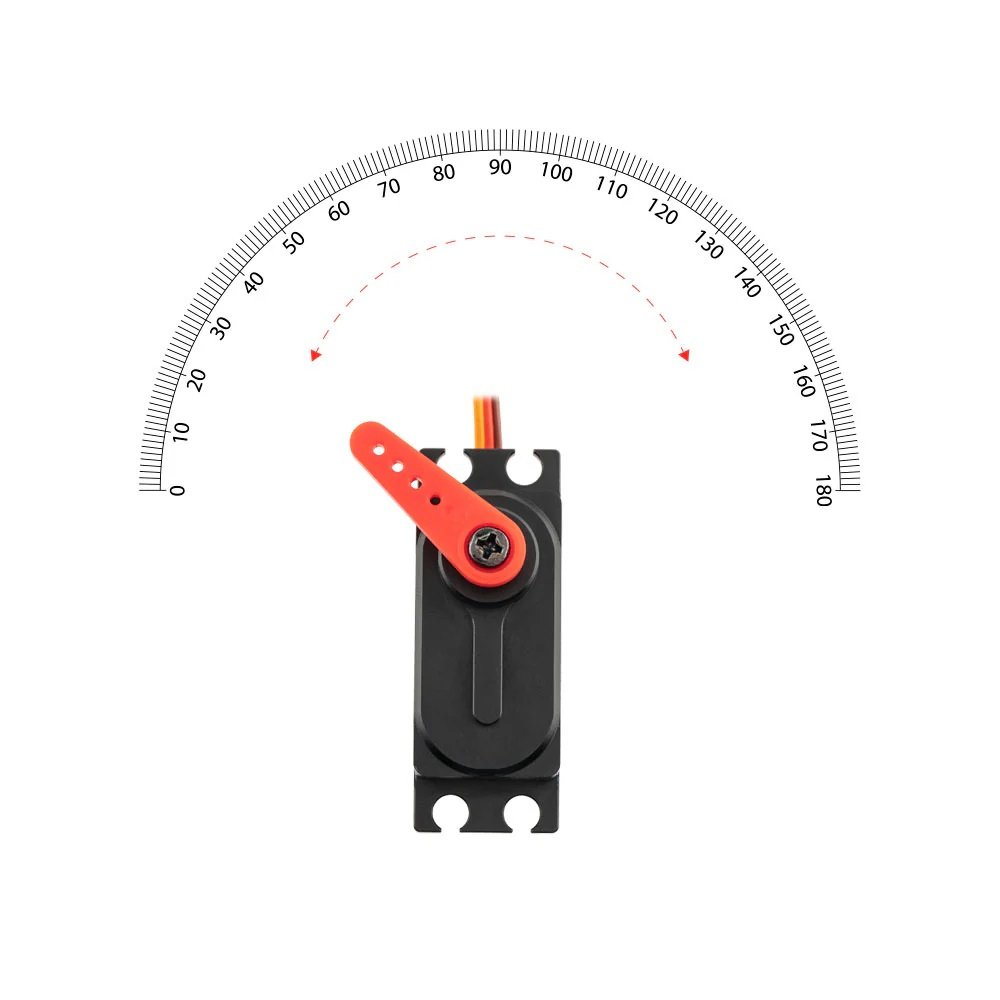

• Default Travel Angle: ±50° = 100° Total
• Temperature Range: -10°C to +65°C
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel Gear
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Waterproof: IP68

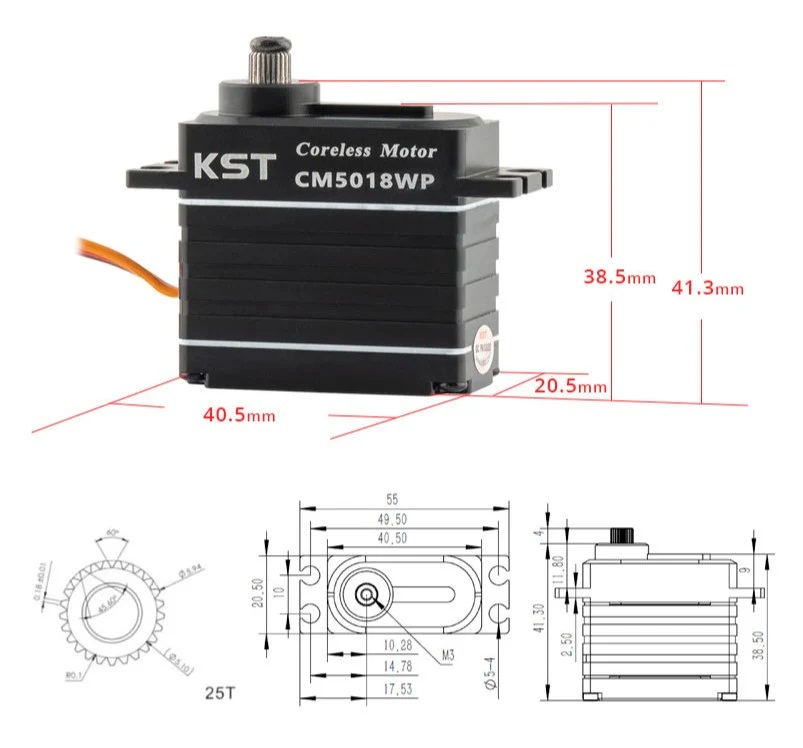

• Case Dimensions: 40.5mm*20.5mm*41.3mm±0.2mm
• Weight: 80g±10%

Programmable with KST-Tool 3 and KST-Tool 5
