Product details

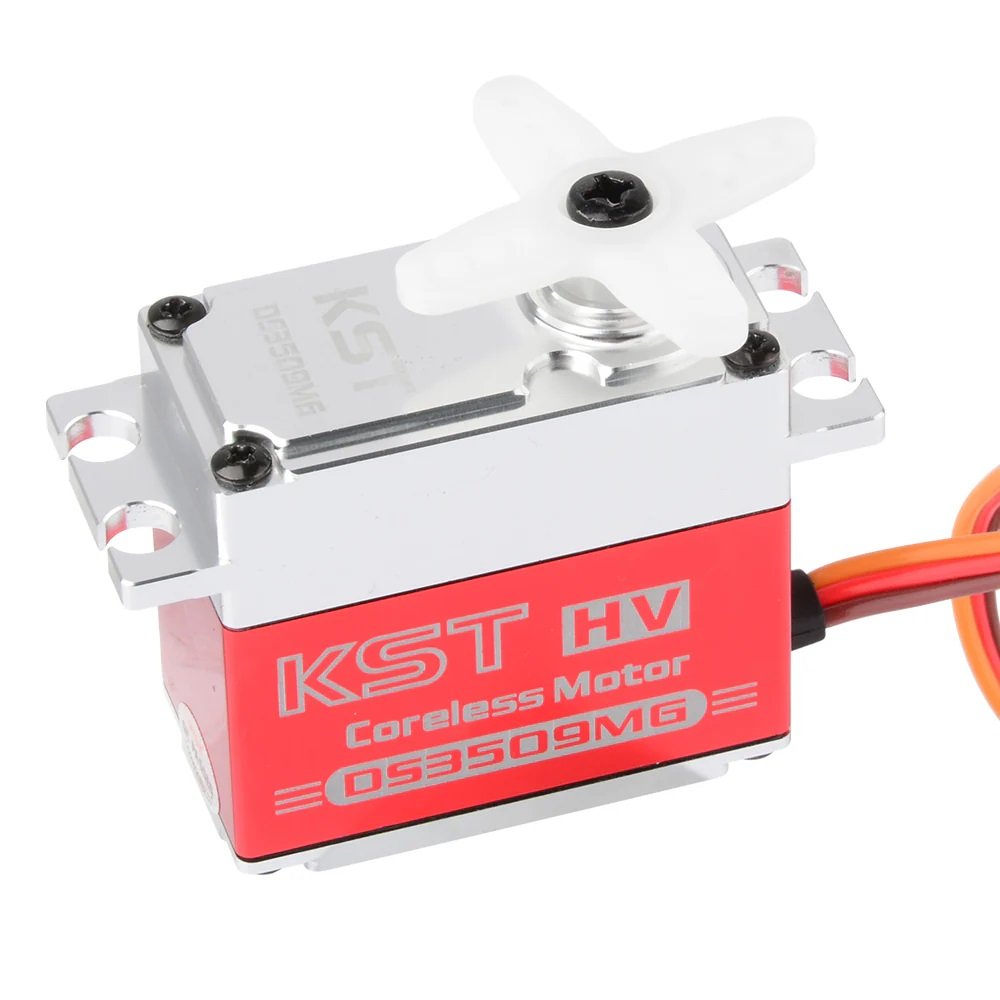

KST DS3509MG

Technical Details:
  • Operating Voltage (max.) [V]:8.4
  • Stalling Torque[kg.cm]@4.8V:–
    Stalling Torque[kg.cm]@6.0V:30
    Stalling Torque[kg.cm]@7.4V:32
    Stalling Torque[kg.cm]@8.4V:35
  • Speed [s/60°]@4.8V:–
    Speed [s/60°]@6.0V:0.14
    Speed [s/60°]@7.4V:0.13
    Speed [s/60°]@8.4V:0.12
  • Width [mm]:21.0
  • Length [mm]:40.5
  • Height [mm]:38.0
  • Weight [g]:78.0
  • Motor Type:Coreless
  • Frequency Range:1520us/333Hz, 900us-2100us
  • Gear Type:Metal
  • Bearing Type:2BB
  • Output Shaft Type:T25/6
  • Servo Type:Standard
  • Electronics:Digital
  • Position Sensor:Potentiometer
  • Waterproof:No
  • Manufacturer:KST

Please note the servo specification of the model manufacturer when selecting the servos.
