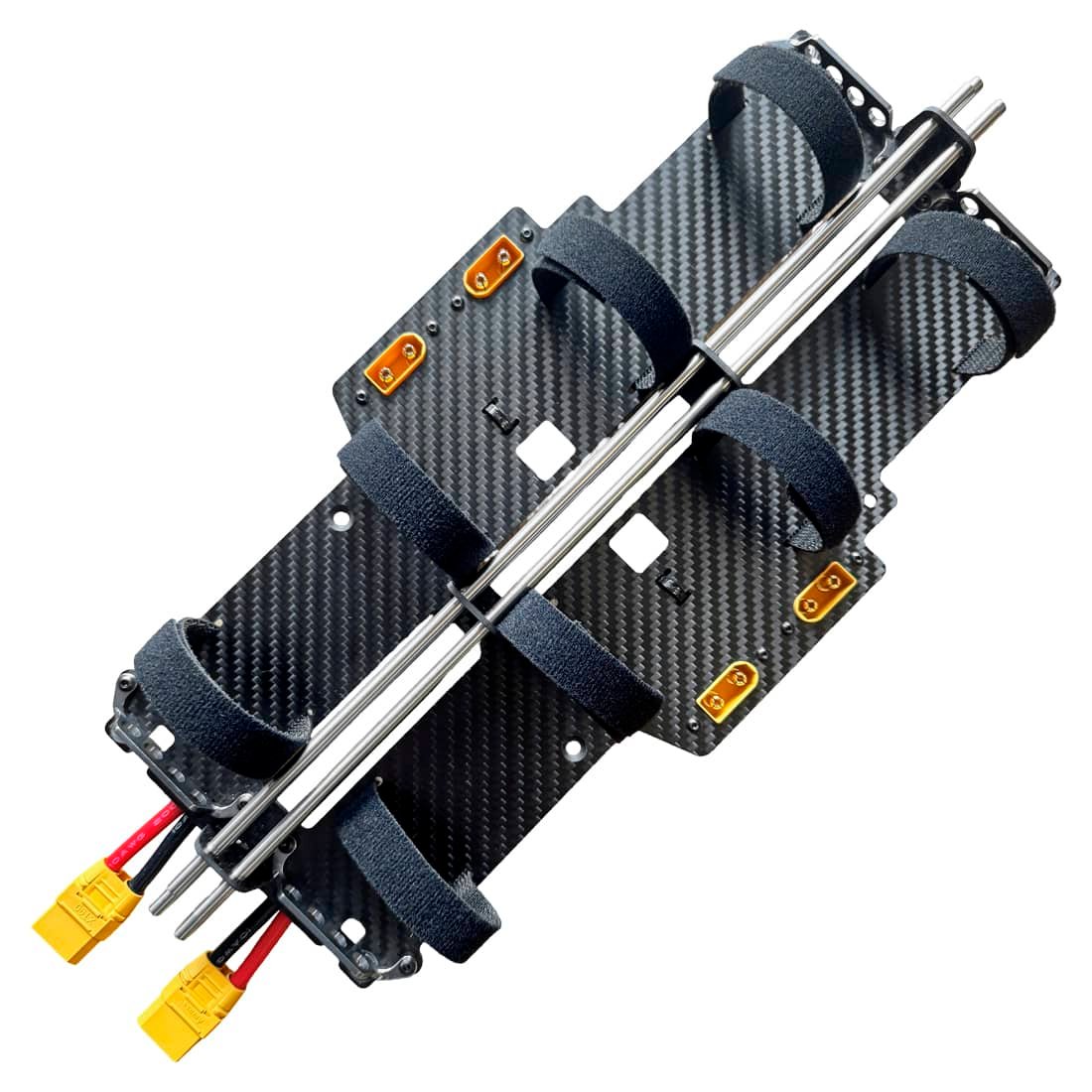

Power Board for aero-naut Comtesse

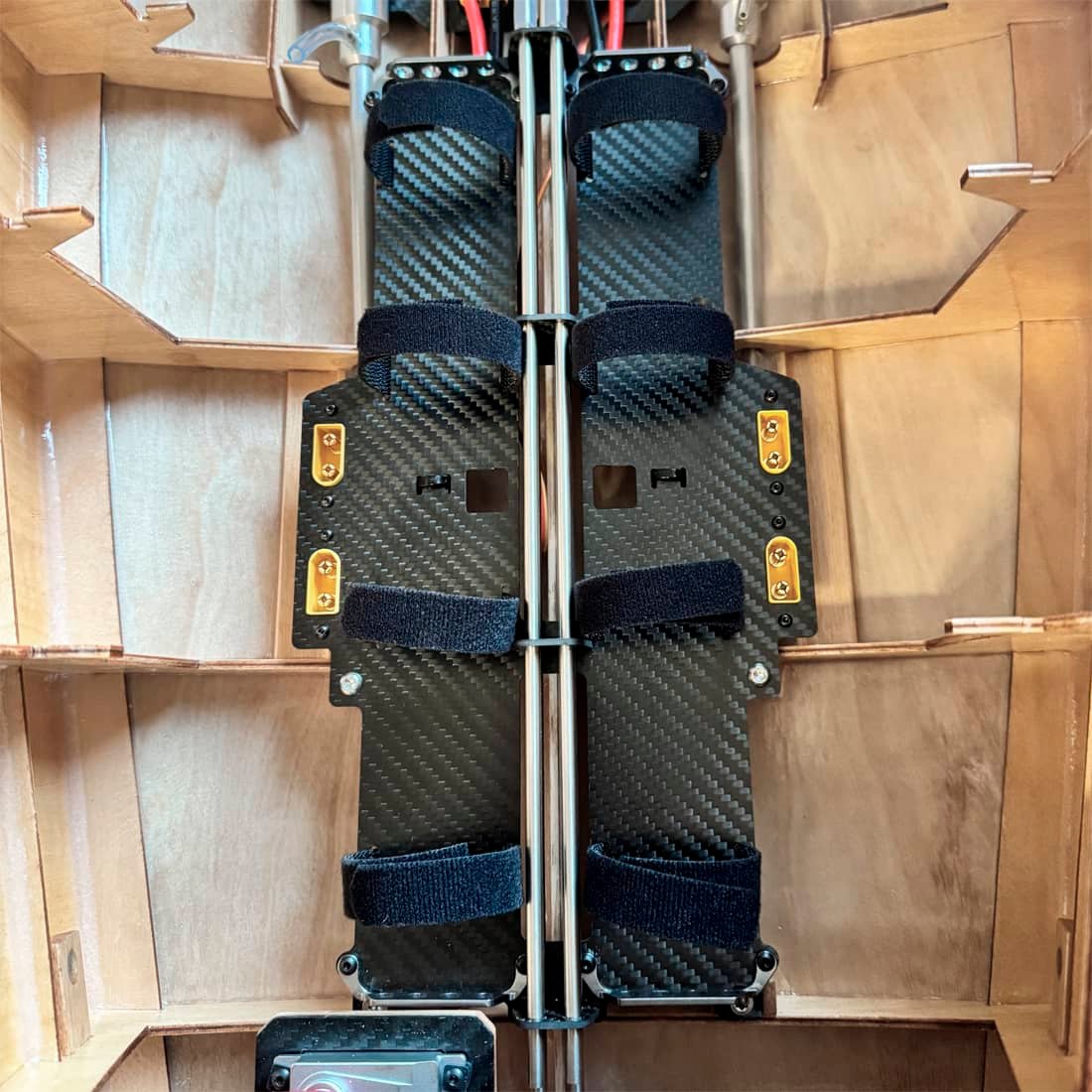

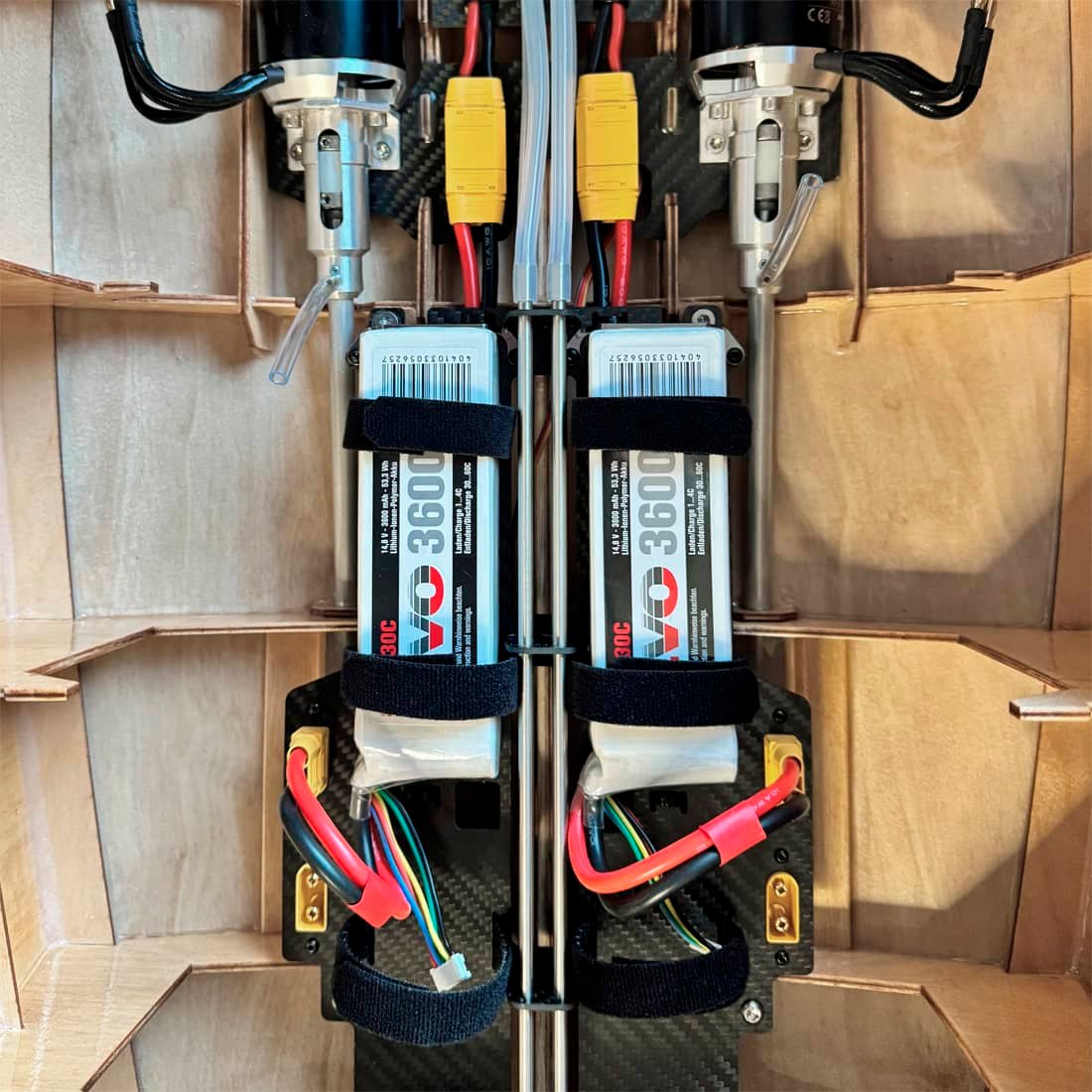

We bring order to the Comtesse! The Power Board from the ProLine series is made of 2mm thick carbon fiber and provides space for up to four 4S LiPo batteries. It is mounted behind the motors in the Aero-Naut Comtesse and impresses with its flat, compact design, which ensures a low center of gravity and optimal weight distribution in the boat.

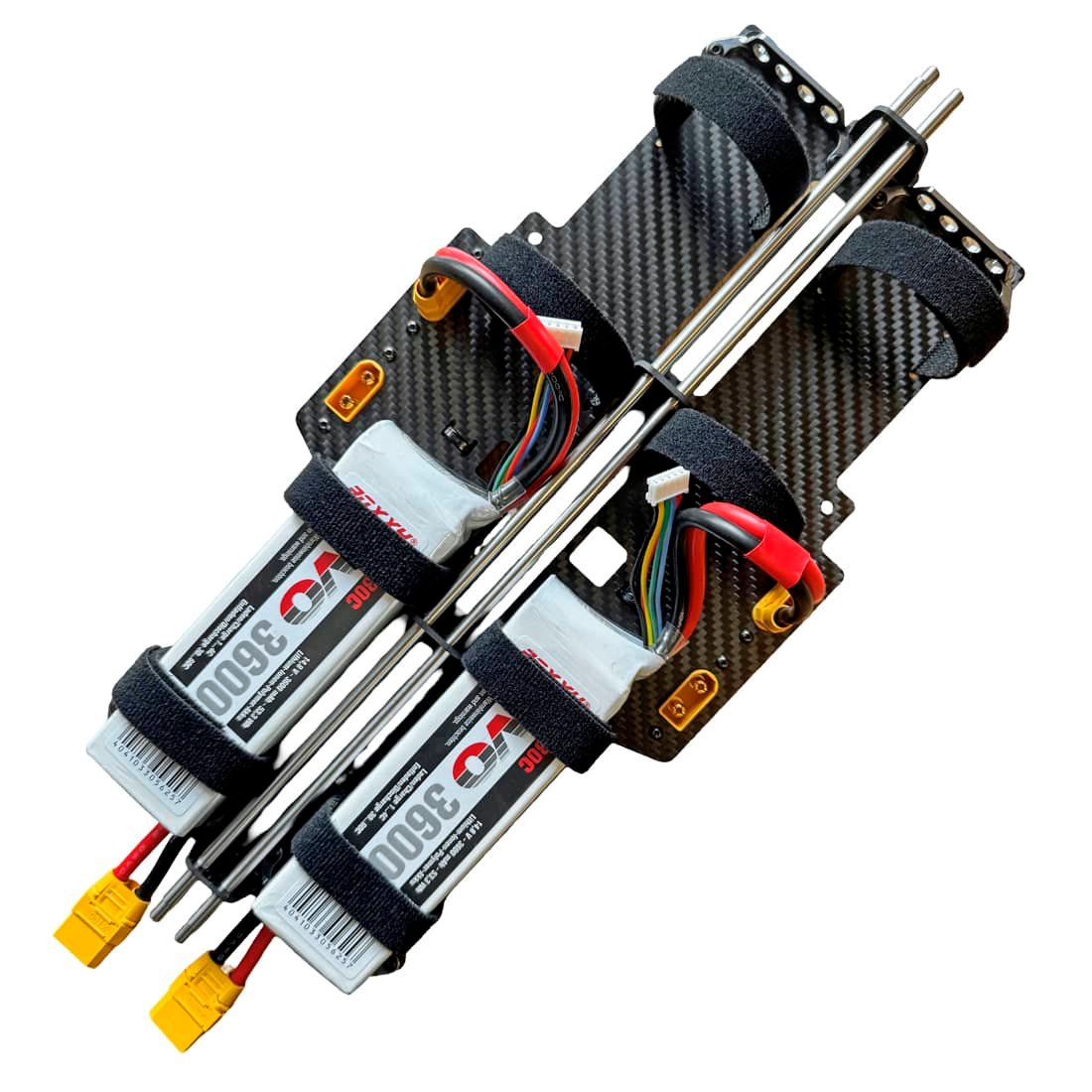

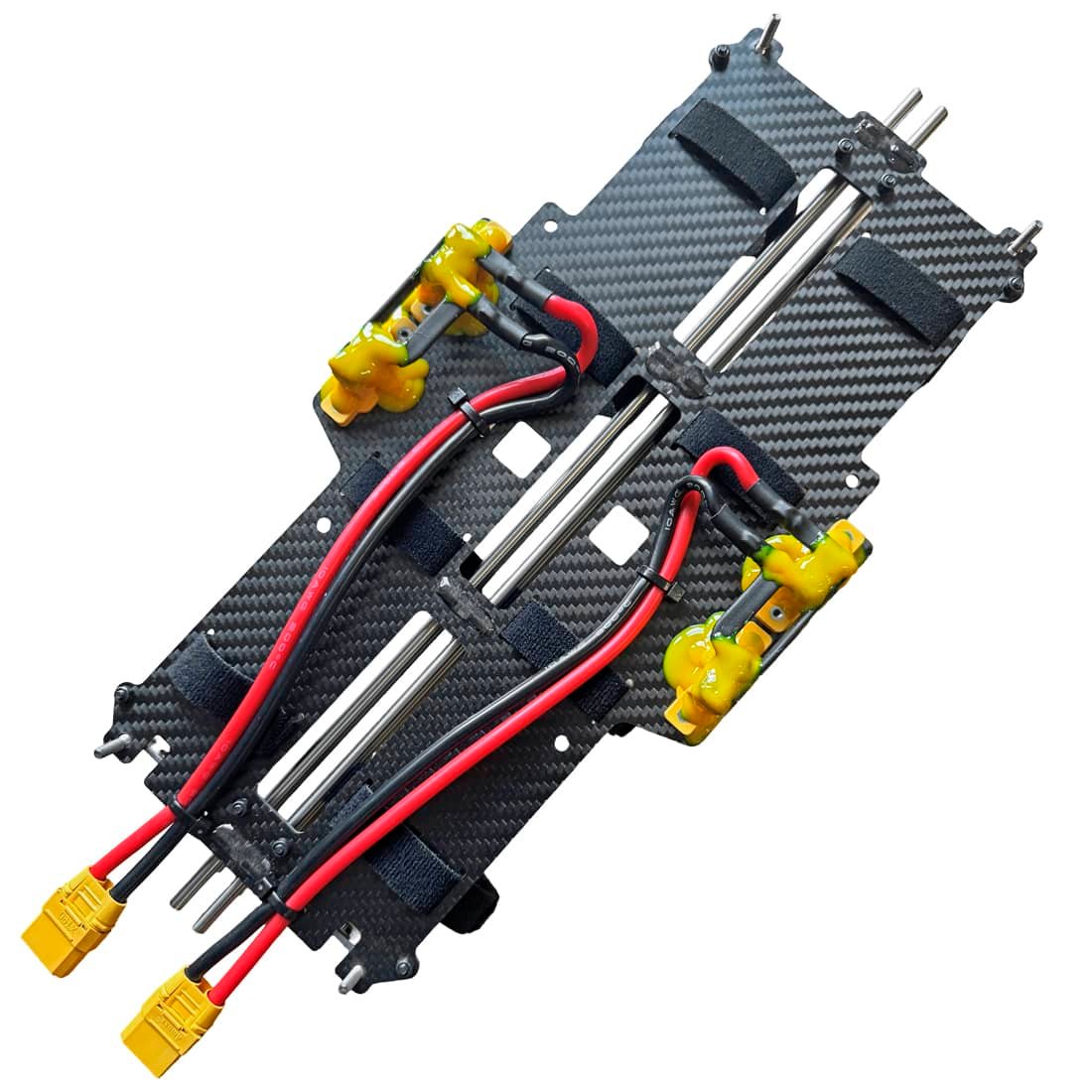

The Power Board is available in two variants that enable flexible battery configurations: either with two 4S batteries, four 4S batteries in parallel for longer run times, or four 4S batteries in series as an 8S configuration. The XT90 connectors are connected via high-current copper traces depending on the variant and are waterproof encapsulated to ensure reliable and safe power transmission. For connection to the ESC, 10AWG silicone cables with a cross-section of 6mm² and a length of 100mm are pre-installed.

An innovative cooling water routing made of thin-walled stainless steel tubing integrates the cooling system in an elegant way. It precisely connects the cooling water inlets and outlets in the stern with the motors and ESCs. The result is a space-saving, clean, and visually appealing solution that simultaneously offers maximum efficiency and durability. Crushing or kinking, as can occur with conventional hose routing, is completely eliminated.

Technical data:

• Material: Carbon fiber / Stainless steel / Aluminum
• Battery connector: XT90 (panel-mount connector)
• Wiring: 10 AWG silicone cable 6mm²
• Weight: 400g

Scope of delivery

• 1 piece – Carbon Power Board (pre-wired)

– the Professional series from ScaleMonkey: Where precision meets perfection.
